Winger
WINGER RDE 21S 35WB SCH HR BS6 Phase 2

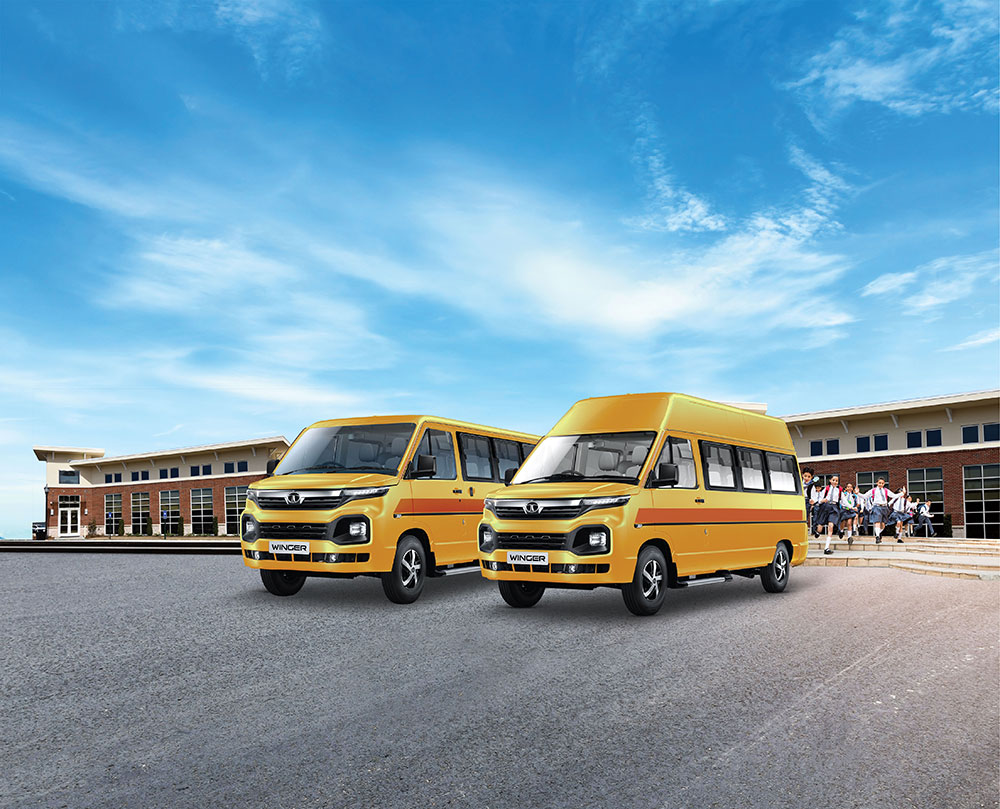

Winger is a multi-utility passenger vehicle that is Bigger on Mileage, Better on Comfort, Best on Earnings.
3200
Wheelbase
74.8kW@3750+/-rpm
Max Power
200Nm@1000to3500rpm
Max Torque
Diesel
Fuel Type
School vans
Application
Overview
The Tata Winger range is built to provide a comfortable and relaxed driving experience, all while maintaining cost efficiency. It's a versatile multi-utility passenger vehicle that prioritises fuel economy, comfort and safety. With features like comfortable seats, low vibration and a monocoque body for a car-like ride, it is a top choice for passengers, and its impressive fuel efficiency makes it a preferred option for operators.
Features
Power Of 6
Specifications
ENGINE
MAKE
TATA Motors Limited
MODEL
VARICOR 11
TYPE
Compression Ignition Diesel Engine
NO. OF CYLINDERS
4 Cylinders
DISPLACEMENT
2179
MAX. ENGINE OUTPUT, KW@RPM
74.8 kW @ 3750+/-rpm
MAX. TORQUE, NM@RPM
200 Nm @ 1000 to 3500 rpm
TYPE OF FUEL
Diesel
CLUTCH
TYPE
Dry, Single Plate
GEAR BOX TYPE
Synchromesh
NO. OF GEARS
5 Forward + 1 Reverse
STEERING
TYPE/DESCRIPTION
Rack & PinionType / PowerSteering
SUSPENSION
TYPE / DESCRIPTION (FRONT)
McPherson Strut with coil spring
TYPE / DESCRIPTION (REAR)
Parabolic leaf spring
SPRING
Front-Coil Spring; Rear-Leaf Spring
ANTI-ROLLBAR (FRONT)
Yes (Optional)
ANTI-ROLLBAR (REAR)
Yes (Optional)
SHOCK ABSORBERS (FRONT)
McPherson Strut; 2 Nos
SHOCK ABSORBERS (REAR)
Double Acting Hydraulic Telescopic Shock Absorbers; 2 Nos
BRAKE
SERVICE BRAKE (BRIEF DESCRIPTION)
Vacuum Assisted Hydraulic brakes Dual Circuit with Tandem Master Cylinder acting on all four wheels with Automatic wear adjuster at rear.
ABS FITTED (YES/ NO/ OPTIONAL)
Yes
FRONT (DISC / DRUM)
Disc Brake
REAR (DISC / DRUM)
Drum Brake
TYRE SIZE DESIGNATION INCLUDING PLY RATING
FRONT
LT 195 R15 8PR
REAR
LT 195 R15 8PR
ELECTRICAL SYSTEM
SYSTEM VOLTAGE, V
12 Volts
BATTERY RATING, AH
80Ah / 75Ah / 78Ah / 65Ah
FUEL TANK
CAPACITY, LTR
60
DIMENSIONS
WHEEL BASE, MM
3488
OVERALL WIDTH, MM
1905
OVERALL LENGTH, MM
5478
OVERALL HEIGHT, MM
2670
MIN. GROUND CLEARANCE, MM
180mm
SEATING
SEATING CAPACITY
20+A+D
