VIEW MODEL
-
-
WINGER FL AMB 32SH 10+P AC

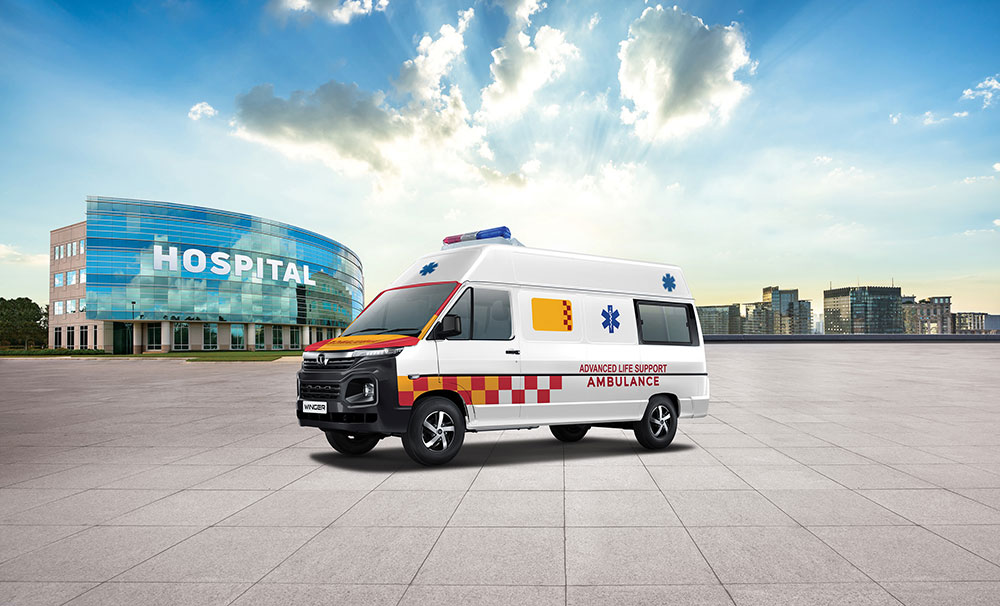

The Tata Winger Ambulance complies with AIS 125 part 1 norms and is offered in four configurations: Patient Transport, Basic Life Support, Advanced Life Support, and Shell.
3200
Wheelbase
73.5 kW @3750 r/min
Max Power
200 Nm @1000-3500 r/min
Max Torque
Diesel
Fuel Type
Ambulance vans
Application
Overview
With the new Winger BS6, six significant features take centre stage. These include a focus on Profit Optimization, thanks to its cost-effective LNT+ DPF technology and an Eco-Fuel Saving Mode. Performance is also a key highlight, driven by a 2.2L engine that delivers an impressive 73.5kW of power and 200 Nm of torque at 1000-3500 r/min. Moreover, the new Winger BS6 places great emphasis on enhancing both driver and passenger comfort, ensuring a pleasant and comfortable journey. Connectivity and convenience are also at the forefront with the inclusion of telematics and fleet management solutions.
Power Of 6
Power of Driver and Passenger Comfort
- McPherson Strut coil spring with wishbone type suspension
- Monocoque body structure for car-like comfort
- Spacious and comfortable seating with deluxe seats and a three-way adjustable seat for the driver
Power of Value
- TATA Sampoorn Seva 2.0
- Winger comprehensive AMC
- Winger Promise 2.0
Power of Style and Design
- Premium tough design philosophy with new chrome-plated Trust Bar with Tata logo
- Integrated wraparound DRL with full LED technology-cum-turn signal indicators
- Split grill with matte black finish and enhanced opening for better airflow and radiator performance
Power of Profit
- Best-in-class fuel efficiency in vans for higher profits
- Eco switch gives efficient engine management for higher fuel efficiency
- Torque based Gear Shift Advisor advises the right time to change gears
Power of Performance
- Well-proven Tata DICOR 2.2 litre BS6 Phase 2 engine
- Power output of 74.9 kW at 3750 rpm, offering best-in-class power-to-weight ratio in vans
- Torque of 200 Nm at 1250-3500 rpm, with peak torque available in a wider interval to reduce gearshifts
Power of Connectivity & Convenience
- TATA Fleet edge - Fleet Management System
- Real time vehicle track & trace and Drivers Behaviour Assessment, with Alerts
- Fuel Consumption & Fuel Theft Monitoring and Vehicle Master and Reminders
Emission
BS6
Engine Capacity
2.2 Litre Dicor
Engine Power
73.5 kW @3750 r/min
Engine Torque
200 Nm @1000-3500 r/min
Gearbox
5 fwd+ 1reverse, Manual
Clutch
215 mm single - plat, dry friction, semi-hydraulic actuation
No. Of Gears
5
Steering
Power Assisted Rack & Pinion
Front Brakes
Disc Brakes with Twin Pot Calliper
Rear Brakes
Drum Brakes
Front Suspension
Mcpherson Struts with Coll Spring
Rear Suspension
Parabolic Leaf Springs, Hydraulic Telescopic Shock Absorber
Wheelbase
3200mm
Length
4940 mm
Width
1950 mm
Height
2670 mm
Ground clearance
185 mm
GVW
3033 kg
Tyre
195R15 LT
Battery
12 V; 80 Ah
Additional Battery
NA
Anti-Roll Bar
In front and rear
